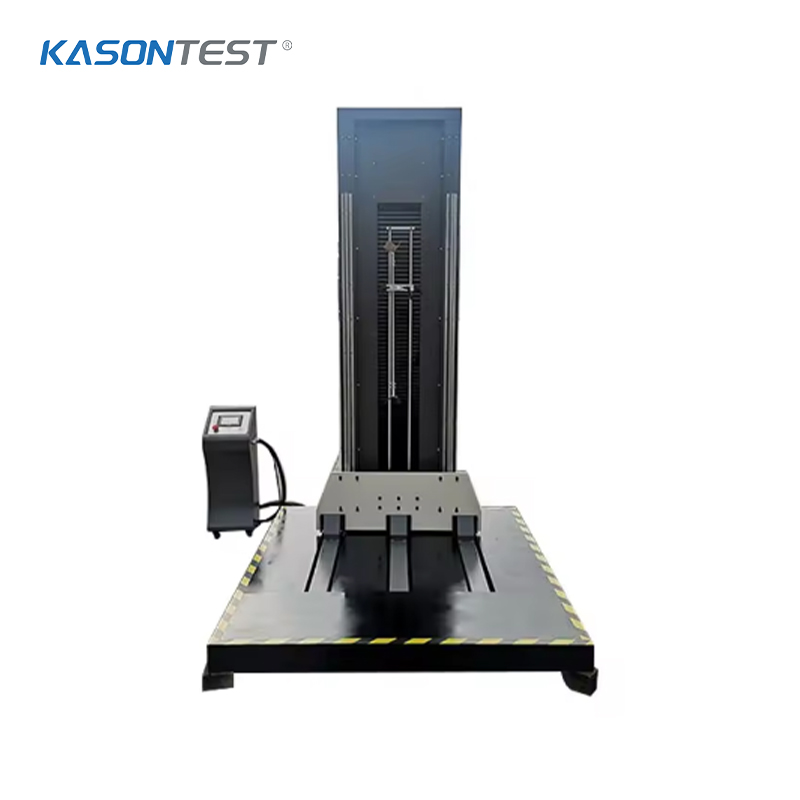

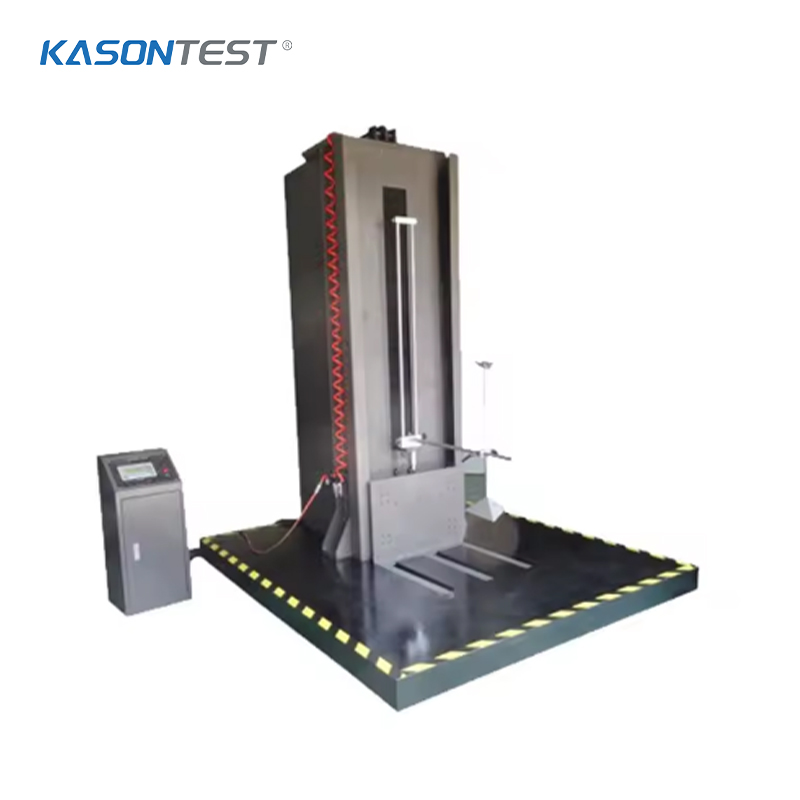

Zero Distance Package Drop Tester

Zero Distance Package Drop Tester

This machine is specially designed to test the damage of product packaging by falling, and to evaluate the impact strength during transportation

Angebot erhalten

Produktdetails

Application:

,This machine is specially designed to test the damage of product packaging by falling, and to evaluate the impact strength during transportation.

Applicable standard: ISO2248 JISZ0202-87 GB/T4857.5-92

Machine features:

Zero Distance Package Drop Tester can be free drop test on the surface, Angle and edge of the package, equipped with digital height display instrument and the use of decoder for height tracking, so that the product drop height can be accurately given, and the preset drop height error is not more than 2% or 10MM. The machine adopts single-arm double-column structure, with electric reset, electronic control drop and electric lifting device, easy to use; The unique buffer device greatly improves the service life, stability and safety of the machine. Single arm setting for easy placement of products.

Produktparameter

Wichtigste technische Parameter:

1, Fallhöhe mm: 300-1500 einstellbar

2, das maximale Gewicht der Probe kg: 0-80 kg;

3. Dicke der Bodenplatte: 10 mm (massive Eisenplatte).

4, die maximale Größe der Probe mm: 800 x 800 x 1000

5, Schlagplattengröße mm: 1700 x 1200

6, Fallhöhenfehler: ±10 mm

7, die Prüfstandabmessungen mm: ca. 1700 x 1200 x 2315

8, Nettogewicht kg: ca. 300 kg;

9, Testmodus: Gesicht, Winkel, Kanten-Allround-Drop

10. Steuermodus: elektrisch

11. Fallhöhenfehler: 1 %

12. Panel-Parallelfehler: ≤1 Grad

13. Der Winkelfehler zwischen der fallenden Oberfläche und der Ebene beim Fallvorgang: ≤1 Grad

14. Stromversorgung: 380 V1, AC380 V, 50 Hz

15. Leistung: 1,85 kWa
